Grupo Ramos combines different picking and storage systems to improve the logistics of its new warehouse in the Dominican Republic

Grupo Ramos combines different picking and storage systems to improve the logistics of its new warehouse in the Dominican Republic

The integration of multiple storage solutions in the Grupo Ramos distribution centre

Grupo Ramos

Grupo Ramos, a leading retail sales company in the Dominican Republic, owns an enormous installation supplied by Mecalux. This facility integrates multiple storage solutions that bring together a large variety of products and harness the profitability of the distribution centre. The warehouse, with a capacity for more than 42,800 pallets, has improved the efficiency of the company, besides optimising its logistics costs.

About Grupo Ramos

Grupo Ramos is the leading retailer in the Dominican Republic and one of the main private sector employers in the country. More than 10,000 staff work in its sales establishments, corporate offices, baking plants and distribution centres.

The company’s history starts back in 1965, when Román Ramos Uría, a native of Asturias (Spain), at barely 24 years old acquired La Sirena on Mella Avenue in Santo Domingo. Grupo Ramos currently operates in more than 50 shops (La Sirena, Super Pola, Aprezio and Gran Aprezio), which together receive 50 million visits a year. It also operates two regional shopping centres, under the Multiplaza brand.

From its beginnings, Grupo Ramos diligently served its customers with excellence, by means of its different business units. The clear vision of its founders, the principles and values that guide its actions, a dynamic business strategy and a highly dedicated team are some of the keys to the company’s leadership and success.

At first glance: a multi-solution warehouse

The new Grupo Ramos distribution centre is at the heart of an ambitious reno and logistical expansion project, which started in 2009, in order to deal with increased customer demands in a more efficient and logical manner.

On an initial plot of 142,000 m2, an enormous 38,500 m2 building was raised. It is capable of storing 42,816 pallets of a variety of goods to attend to three shop channels: La Sirena, Super Pola and Aprezio. The installation, which has experienced a qualitative jump logistically, incorporates the following warehouse solutions and operational areas:

  1. Single-depth pallet racking
  2. Double-depth pallet racking
  3. Picking via gangways
  4. Cantilever racking
  5. Reconditioning and consolidation
  6. Stacked storage
  7. Cross-docking
  8. Returns
  9. /10.Docks and preloads

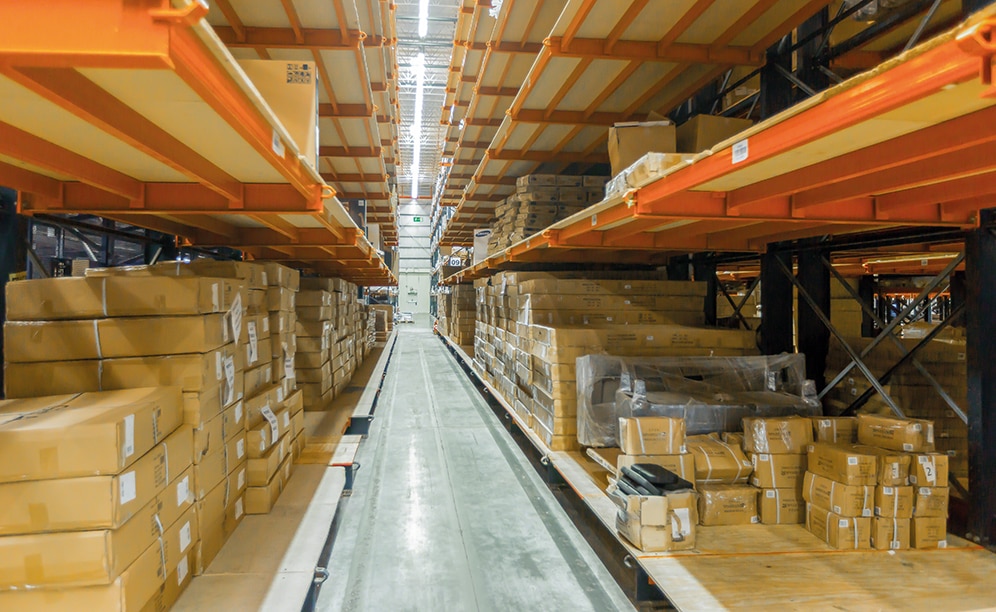

Single-depth pallet racking
Four areas with pallet racks were installed that take up more than half the surface area of the Grupo Ramos distribution centre. The two zones located in front of the dispatch area and another arranged at one end are smaller than the one set up in the central zone.

The two lower levels of the racks were enabled so that operators could pick directly from pallets, and reserved good are stored on upper levels.

The Grupo Ramos warehouse uses perimetral type pallets, i.e., which have skids with entry points on all four sides. This kind of pallet helps to improve stability when remounting them, and is handled by pallet trucks or reach trucks.

The pallet racks make direct access to each pallet possible, housing the maximum quantity of unit loads safely and in a well-organised manner.

Double-depth pallet racking
This block of racks, comprised of eight 77 m long aisles and located in a corner of the installation, is allocated to store highly consumed products.

Double-depth pallet racking is characterised by its simplicity and its ability to optimise space to achieve high storage capacity within the warehouse.

Operators use reach trucks specifically for handling pallets in this kind of racking.

Cantilever racking
Cantilever racking was integrated into the pallet racking zone, leaving sufficient space on both ends to facilitate the handling of goods.

This system is the best option for the storage of large or odd-sized products, since the overhanging arms that hold the unit load permit easy and safe handling.

At the same time, the cantilever racking can be easily adapted to the size, weight, rigidity, tolerances, etc. of the goods.

Picking area with gangways
At one end of the warehouse, and coinciding with the pallet racking area, a racking block was installed that has two level high gangways plus the one on the ground floor. This area, which takes up a surface area of 1,584 m2, is where manual picking of small sized or low turnover goods is performed.

The floor of the gangways is made out of slotted metal flooring, while the shelves of the racks are mesh. This type of material, in addition to having a high load capacity, makes optimal ventilation and perfect water flow possible in the event the fire safety system is set off.

Access to the different gangway levels is done by means of two staircases placed in the corners, making accessibility and maximum safety a priority both in the installation and for the operators. Open passageways are protected by rails.

In addition, the block is equipped with two swinging safety doors, a system well suited to create a loading and unloading area of the goods handled by forklifts and pallet trucks.

Reconditioning and consolidation area
In front of the picking block with raised gangways, there is an 840 m2 space with 24 tables where orders are prepared and consolidated with smaller sized products.

In this area, the operators put orders together, verify the packing list and shipping labels. Furthermore, there are the computers and printers needed for completing the operation.

Stacking and cross-docking area
There is a 700 m2 space in the centre of the warehouse where pallets are stacked on the floor with the help of forklifts.

A cross-docking zone was created right beside it, a 600 m2 area with 48 channels where they store a total of 192 pallets with high turnover products, i.e., the goods that are immediately distributed and do not end up in the racks.

Reception and dispatches
The preloads area is enabled in front of the 56 loading docks of the Grupo Ramos distribution centre, allocated to the reception and dispatch of goods.

Pallets are grouped depending on if they correspond to an order, route or external transportation. Orders are prepared before the truck is loaded, in order to avoid timeouts in outgoing goods coming from the warehouse.


Advantages for Grupo Ramos

  • Optimal logistics management: Grupo Ramos uses the available space intelligently, making full use of each square metre with efficient operations that contribute to the high throughput of the installation.
  • Diversification: the different solutions implemented in the Grupo Ramos warehouse permit the housing of a large variety of products of different sizes and weights.
  • Profitability: the Grupo Ramos distribution centre has become a benchmark of profitability and efficiency that will assist the company to flexibly manage its continued growth.
