The automatic Pallet shuttle use stacker cranes as its primary transport equipment
How to combine automated and manual storage systems to get the maximum performance from a cold-storage
Hemosa combines automatic Pallet Shuttle with live, drive-in racks
Hemosa, a company specialized in the supply of fresh meats and pork-based products, has entrusted Mecalux to fit out its new warehouse with the latest technologies as far as automation and computerization of its manufacturing processes. For this reason, and with the objective of offering maximum quality products, they have installed various storage systems ranging from an automated warehouse with Pallet Shuttle and stacker cranes to drive-in and live pallet rackings.
- Technical Specifications
Automated warehouse Storage capacity:: 1,050 pallets Maximum pallet weight:: 700 kg Warehouse height:: 10 m Number of stacker cranes:: 1 Type of stacker crane:: single mast + Pallet Shuttle Constructive system:: Pallet Shuttle – traditional construction Live pallet racking Storage capacity:: 188 pallets Maximum pallet weight:: 600 kg Channel depth:: 6.2 m Maximum height:: 5.5 m Drive-in pallet racking Storage capacity:: 426 pallets Maximum pallet weight:: 1,000 kg Maximum lane depth:: 5 m Maximum height:: 6.8 m
- Download PDF
Automated warehouse with Pallet Shuttle: finished products
The Pallet Shuttle system is a version of compact solutions that offers maximum storage capacity, with the added advantage of having load channels with variable depths. Pallets are transported internally through the channels using autonomous shuttles, hence the system name.
The version installed in the Hemosa warehouse is totally automatic and uses stacker cranes as its primary transport equipment between warehouse entry/exits and channel locations, lending to great speed and efficient control of both stock and operations done. The total capacity of this warehouse is 1,050 pallets, 1,200 x 1,200 mm in size with a maximum weight of 700 kg.
The Mecalux Easy WMS is a system which manages all operational basis in a warehouse; starting with entry, next placement based on parametrizable criteria and ending with subsequent dispatch.
The Pallet Shuttle is housed on the cradle of the stacker crane in a position, slightly inferior to the pallet support level; said level is made up of two motorized chains which pick up and drop off the pallet in the entry/exit positions. When the stacker crane is positioned in front of the assigned location, the shuttle raises with the pallet on it and introduces it into the channel to place it on top of the support rail in the available location furthest from the aisle. The profile is also prepared to make movements guided by the Pallet Shuttle. Extraction that are done in inverted order.
The Pallet Shuttle is autonomous and charges its battery in the cradle of the stacker crane in an automatic and straightforward manner. Each shuttle has eight wheels which provide the correct distribution of the weight upon the profile and which help it move smoothly from the stacker crane into the channels. On each side of the aisle, rails allow centering elements to facilitate the movement of the shuttle.
In the warehouse the following elements have been installed:
- Stacker cranes.
- Pallet Shuttles.
- Entry conveyors.
- Exit conveyors.
Pallet entry and exit
Two entry and one exit doors have been enabled. In each of these, a conveyor is entrusted to pick up and drop off pallets in the position which coincides with the aisle in which the stacker crane circulates. Moreover, the doors are protected by rapid action vertical curtains that only open before signal sent by the Easy WMS when the pallet passes through, avoiding changes in the internal temperature of the cold-storage chamber.
When the stacker crane is positioned in front of the conveyor, it sends a signal both to the corresponding conveyor, as well as to the one it carries in the cradle, in order to act in unison and move the pallet from one to another. It also emits a signal to the actual Pallet Shuttle when it is positioned in front of the channel where it must perform, ordering its displacement and the operation to be done.
The two located profiles on both sides of the channel are shaped to allow for double supporting functions both to the pallets and the guide rail, ensuring that the shuttle moves along safely.
From the moment the operator drops off the pallet in one of the entry points and the system is indicated which reference it contains, Easy WMS takes over control of it and its internal management.

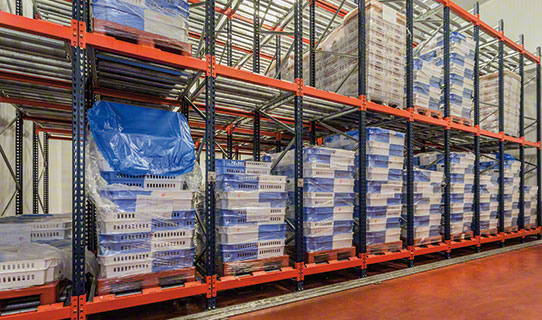

Live Pallet Racking: semi-prepared fresh products
This type of racking, as well as the Pallet Shuttle, is incorporated within the compact storage systems and also maximizes space. The peculiarity of this warehouse is that it is composed of storage channels with a slight incline. Each channel has rollers on which the pallet, introduced into the more inclined side, moves along via gravity until the first position on the contrary side. The velocity of pallet movements of is controlled via roller brakes.
Choosing said storage solution has to do with the type of stored products. Racks used for pallets with semi-prepared fresh products that need a perfect product turnover (FIFO). In order to achieve efficient turnover, live pallet racking is ideal because the first pallet to enter the channel is the first to leave.
Drive-in system: semi-prepared frozen products
Racks are put together having internal lanes of variable depth, in which forklifts enter with pallets raised to the corresponding height. At each level and on both sides, profiles are ready to support the pallets.
Moreover, conventional pallet racking has been supplied to store other products of small volume for internal consumption.
This is a powerful, tried and true warehouse management system developed by Mecalux. It controls all internal operational basis in any warehouse, from reception to verification and location assigned within the warehouse, picking functions and final dispatch based on rules and parametrizable criteria.
In the case of Hemosa and in regards to the automated warehouse, the execution of movements ordered via the Galileo control module. This software takes charge of controlling all actions which must be done by each moving device.
The connection with ERP SAP or the general management system of Hemosa is permanent and bi-directional, exchanging information and instructions that permit the total control of all operations done.
Advantages for Hemosa
- High-density storage: the storage capacity demanded by Hemosa has been achieved thanks to a combination of distinct systems installed.
- A place for each product: a storage solution has been enabled which best adapts to the characteristics and needs of each product that Hemosa works with, attaining perfect turnover and increased productivity.
- Total control of the automated warehouse: Easy WMS from Mecalux controls all processes and operations that happen within a warehouse, from the moment the product leaves the packaging line, up until dispatch.
